Automatic Wire Nail Making Machine Production Line

The Automatic Wire Nail Making Machine is designed to manufacture steel wire nails from wire coils. The production process includes wire feeding, straightening, cutting, heading, pointing, polishing, and packaging. It is suitable for producing common round wire nails used in construction, woodworking, furniture manufacturing, packaging, and general industrial applications. The machine is engineered for continuous operation, high production efficiency, and consistent nail quality.

Typical Specifications
Specification Details
Machine Type Automatic Wire Nail Making Machine
Power Source Electric
Motor Power 3–7.5 kW (depending on model)
Voltage 220V / 380V / 415V
Frequency 50/60 Hz
Nail Diameter 1.2–6.0 mm
Nail Length 20–150 mm
Production Capacity 120–800 nails/minute (model dependent)
Raw Material Low Carbon Steel Wire, Iron Wire
Wire Diameter 1.2–6.5 mm
Control System Automatic Mechanical / PLC (optional)
Lubrication Automatic or Manual
Weight 800–2,500 kg
Machine Dimensions Approximately 1,500 × 1,200 × 1,400 mm (varies by model)

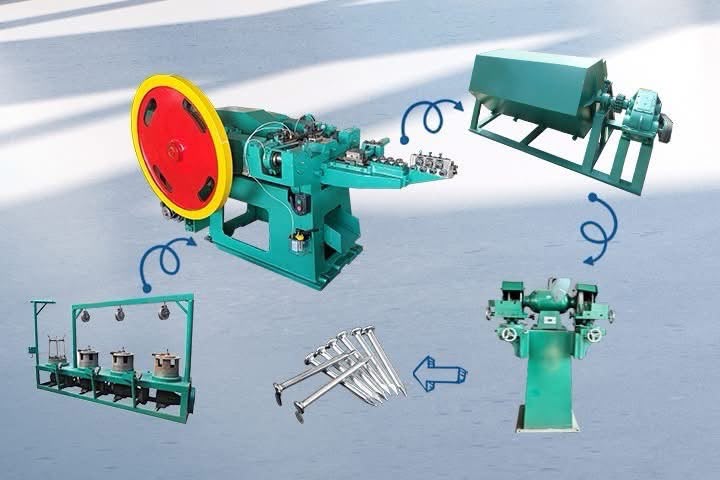

Production Line Components
Wire Drawing Machine (optional)
Wire Straightening Machine
Automatic Nail Making Machine
Nail Polishing Machine
Nail Cutter and Point Former
Finished Nail Collection System
Nail Sizes Produced
Nail Size Diameter
20 mm 1.2–1.6 mm
25 mm 1.4–1.8 mm
38 mm 1.8–2.5 mm
50 mm 2.0–3.0 mm
65 mm 2.5–3.5 mm
75 mm 2.8–4.0 mm
100 mm 3.0–4.5 mm
125 mm 3.5–5.0 mm
150 mm 4.0–6.0 mm
